Telescope Field of View: How to Calculate It and Frame Any Target

A telescope's field of view is the patch of sky your camera captures in one frame: FOV = 2 × arctan(sensor size ÷ (2 × focal length)). Compute it for both sensor dimensions — or skip the math and see it drawn on the real sky with our free telescope field of view calculator.

Telescope field of view is the first number we check before imaging anything — before exposure length, before filters, before anything else. Frame too tight and the Andromeda Galaxy spills out of your shot; frame too wide and a small planetary nebula becomes a smudge lost in the middle. This guide explains what field of view really is, how to calculate it, and then walks step by step through planning a night with our free FOV calculator — the same workflow we use for our own remote rig in Chile.

This guide is written for beginners: no prior knowledge assumed, every term defined as we go.

What is a telescope's field of view?

Field of view (FOV) is the angular size of the sky patch your equipment can see at once, measured in degrees (°) or arcminutes (′) — there are 60 arcminutes in a degree. The full Moon spans about half a degree (roughly 31′), which makes it a handy yardstick: a field of view of 1° × 0.7° fits about two Moons across.

Here is the part that surprises most beginners: aperture has almost nothing to do with it. A giant 14-inch telescope can show a far smaller patch of sky than a tiny 60 mm refractor. For a camera, only two numbers matter:

• Focal length — how far the telescope's lens or mirror bends light to a focus, in millimetres. Longer focal length = more magnified, narrower field.
• Sensor size — the physical width and height of your camera's chip, also in millimetres. A bigger chip catches a wider field at the same focal length.

(Visual observers meet a related idea: an eyepiece's apparent field of view divided by magnification gives the true field you see. This guide focuses on imaging, where the sensor replaces the eyepiece.)

How do you calculate telescope field of view?

One line of trigonometry per sensor dimension:

FOV = 2 × arctan(sensor dimension ÷ (2 × focal length))

Run it once for the sensor's width and once for its height. A worked example from our own gear — a 130 mm refractor at 910 mm focal length with a 36.9 × 36.9 mm square sensor:

• FOV = 2 × arctan(36.9 ÷ (2 × 910)) = 2.32° × 2.32° — comfortably swallows the whole Orion Nebula region.
• The same camera on our 12″ RC at 2,432 mm: 2 × arctan(36.9 ÷ 4,864) = 52.2′ × 52.2′ — under a quarter of the area, ideal for framing the nebula's bright core.

Add a focal reducer (multiplies focal length by, say, 0.8×) and the field widens; add a Barlow or extender (2×, 3×) and it narrows. That's the whole calculation — and it's also the first thing our FOV calculator does for you, live, while drawing the result on real survey imagery of the sky. For the deeper optics behind that light cone, see our guide to telescope resolution and seeing.

Step-by-step: framing a target in the FOV calculator

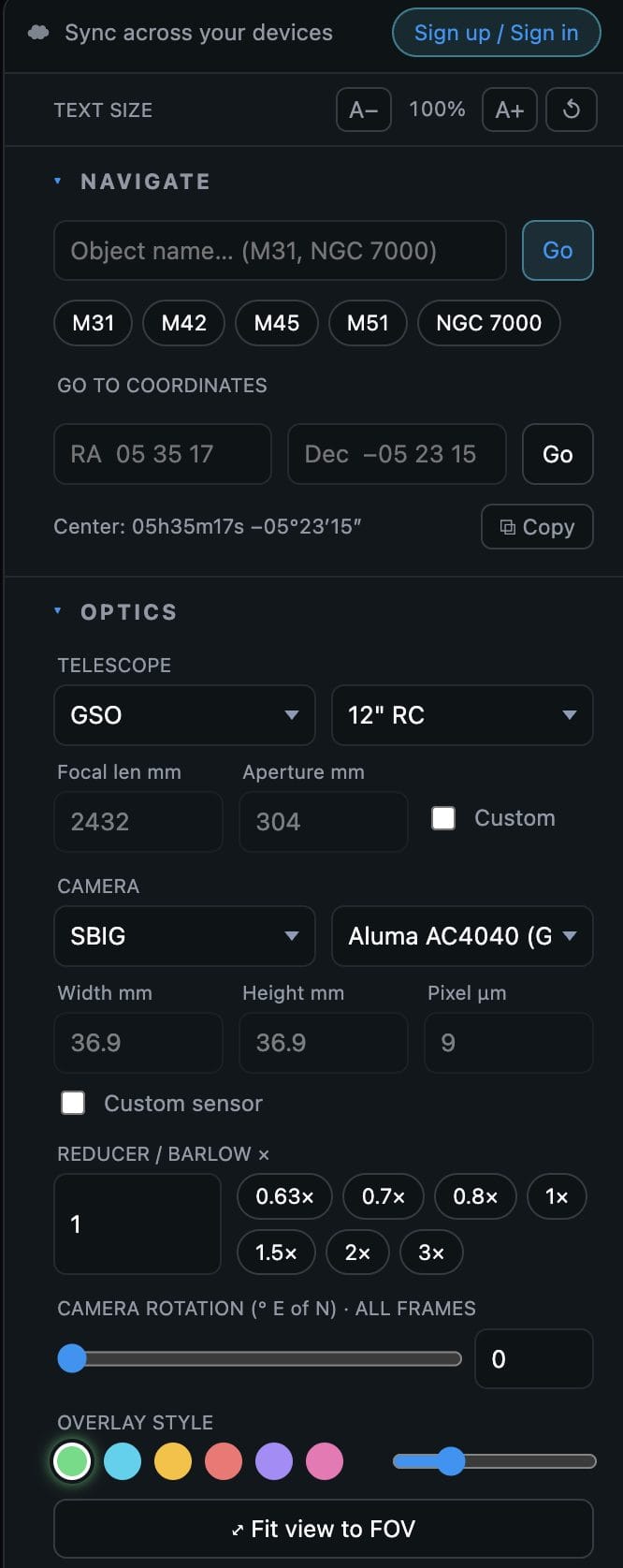

Open the calculator and work down the left panel:

1. Pick a target. Type any object name (M31, NGC 7000) into Navigate, use the quick chips, or paste RA/Dec coordinates. The sky view jumps there on real deep-sky survey imagery.
2. Choose your telescope. Brand, then model — around 170 telescopes are built in, and the focal length and aperture fill in automatically. Own something unusual? Tick Custom and type the numbers.
3. Choose your camera. Same idea: over 100 cameras with exact sensor dimensions and pixel sizes. DSLRs and mirrorless bodies are in there alongside dedicated astronomy cameras.
4. Set your reducer or Barlow. Click 0.63×, 0.7×, 0.8×, 1×, 1.5×, 2× or 3× — or type any factor. Watch the frame on the sky grow or shrink instantly.
5. Rotate if needed. The rotation slider tilts the frame exactly as rotating your camera in the focuser would — long, thin targets often frame better on the diagonal.
6. Fit view to FOV. One click zooms the sky so every frame you have visible fits on screen.

The outlined rectangle on the sky is your sensor, to scale, on the actual stars. If the galaxy pokes out of the box, you know before you ever set up the mount.

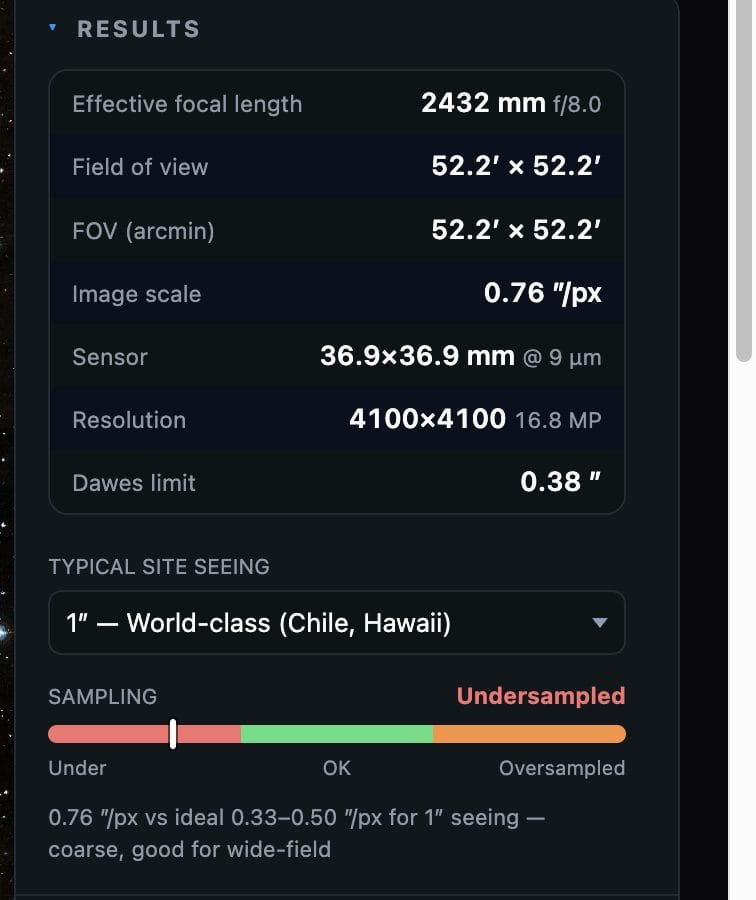

How do you read the results panel?

Each row answers one practical question:

• Effective focal length / f-ratio — your focal length after the reducer or Barlow, and how "fast" the system is. Lower f-ratio gathers light faster.
• Field of view — the framing result, in degrees and arcminutes. Compare it to your target's size (the Orion Nebula spans about 1°; Andromeda about 3°).
• Image scale — arcseconds of sky per pixel (″/px). This single number decides how much detail you can resolve, and it feeds the sampling gauge below.
• Resolution — the pixel dimensions of your final image, in megapixels.
• Dawes limit — the finest detail your aperture can physically separate, in arcseconds.

What is good sampling — and what does the gauge mean?

Stars never arrive as points. The atmosphere smears them into blobs an arcsecond or three wide — astronomers call the blur seeing. Good sampling means your pixels are the right size for that blur:

• Undersampled — pixels too coarse; stars turn blocky and fine detail is lost. Common with short focal lengths and big pixels.
• Well sampled — roughly 2–3 pixels across a star's width. The sweet spot: our gauge marks it green using the classic rule of seeing ÷ 3 to seeing ÷ 2.
• Oversampled — pixels much finer than the blur; you spread the same light thinner and gain noise, not detail.

Pick your Typical site seeing from the dropdown — 1″ for world-class sites like the Atacama or Mauna Kea, 3″ for an average backyard, 5″ for poor nights — and the gauge shows where your combination lands. Don't panic over a yellow reading: undersampled wide fields are how gorgeous mosaics get made. The gauge is information, not judgement. If you want to go deeper on exposure math afterwards, our all-in-one astrophotography calculator picks up where framing leaves off.

How do you compare two telescope setups?

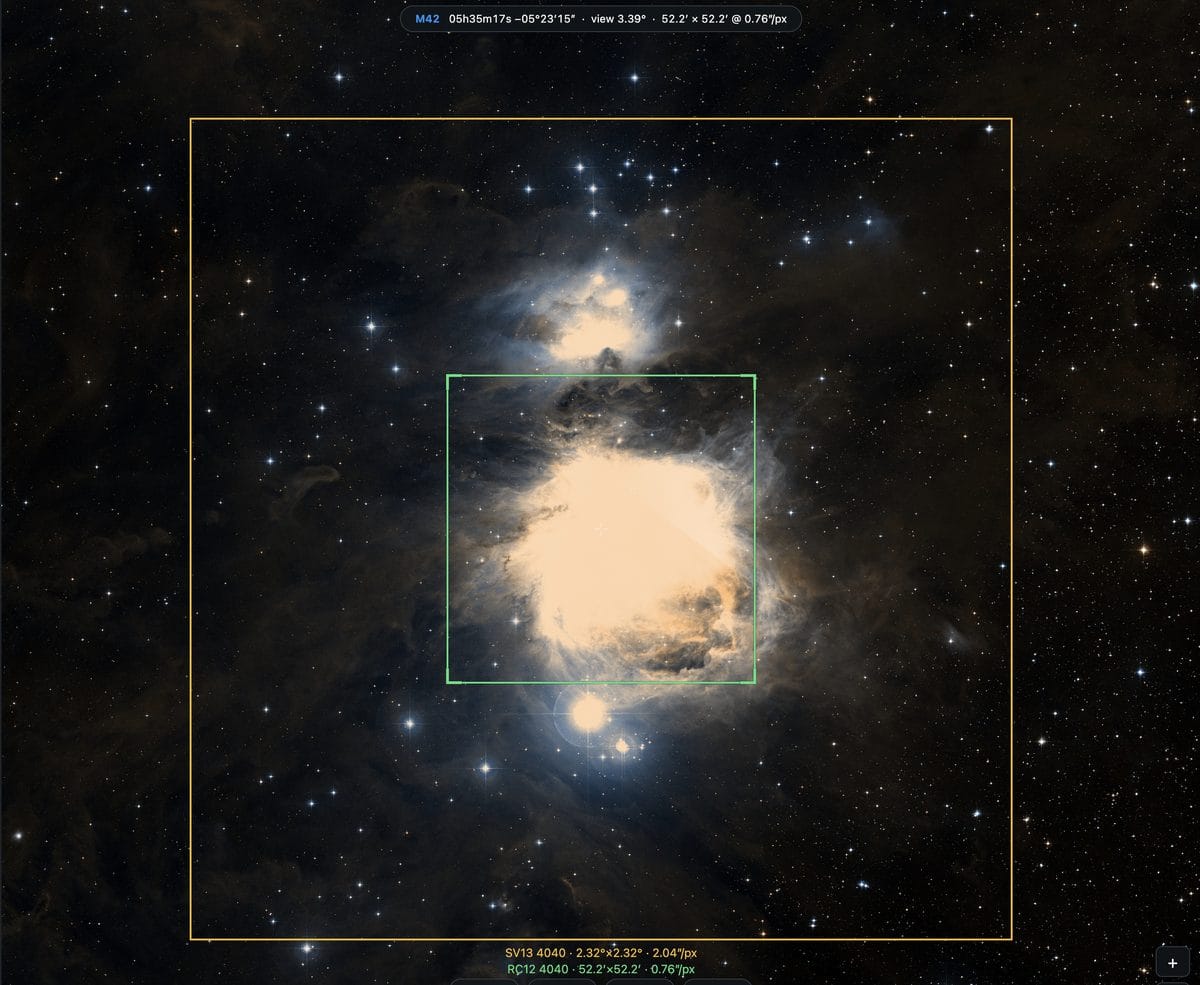

This is the calculator's favourite trick. Set up a combination, click Saved → Save, give it a name, and it becomes a permanent outline you can toggle on and off with the eye icon. Save your other rig — or the rig you're thinking of buying — and both rectangles sit on the same sky at true relative scale.

Reading the overlay is simple: the solid frame with corner ticks is always your current setup; saved comparison frames draw in their own colours, and the legend at the bottom names each one with its field and image scale. Click a saved setup's name to load it back into the editor; if you then tweak it, an Update button saves the change back. It's the honest way to answer "would a focal reducer actually help?" — you see the difference before spending a dollar.

Planning the night: target lists, altitude and imaging sites

Framing is half the plan; the other half is when. Three more panels finish the job:

• Target lists — build named lists ("Autumn galaxies", "Nebula season") and hop between objects with one click. Each entry remembers its coordinates.

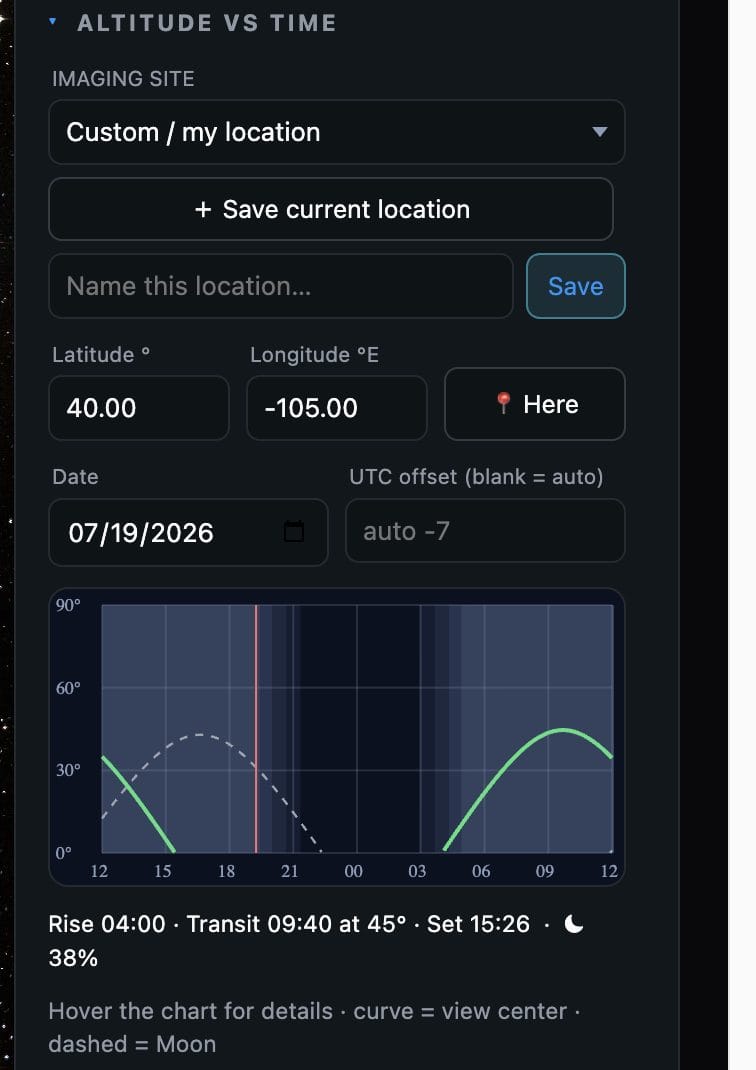

• Altitude vs time — a curve of your target's height above the horizon through the night, computed for your location and date. Image when the curve peaks: the higher the target, the less atmosphere you shoot through. The dashed curve is the Moon — the further it stays from your target, the darker your background.
• Imaging sites — type your latitude and longitude, click Here to use your device's location, or pick a built-in remote-hosting site (Chile, New Mexico, Spain, Namibia, Australia). Save your own spots with ＋ Save current location and they appear in the dropdown under "My sites".

Sync your setups across devices

Everything above — saved setups, target lists, favourite sites, even your preferred seeing — used to live in one browser on one computer. As of July 2026 it follows you: click Sign up / Sign in at the top of the calculator, enter your email, and a magic link signs you in (no password to invent). Sign in on your phone with the same address and your gear is simply there. Plan on the couch, refine at the telescope.

Accounts are free, and your data lives on our own infrastructure — no third-party login provider — used for nothing except keeping your planning in sync.

A complete worked example

Say you image with an 8″ f/5 Newtonian (1,000 mm) and a popular APS-C astronomy camera (23.5 × 15.7 mm, 3.76 µm pixels), and tonight's target is the Orion Nebula:

1. Navigate to M42. Select the scope and camera; the results panel reports a field of 1.35° × 0.90° at 0.78″/px.
2. The nebula's glowing wings just kiss the frame edges — tight. Click 0.8×: the field opens to 1.68° × 1.12° and the whole complex breathes, at 0.97″/px.
3. Seeing at 3″ (average backyard) puts both options in or near the green band — well sampled. Take the wider framing.
4. The altitude chart says M42 transits at 21:40 and the Moon is 38% and far away. That's your window.
5. Save the setup, add M42 to your "Winter showpieces" list, and it's all waiting — on every device — when the clouds finally part.

Five minutes of planning, zero wasted clear-sky time. That's the entire point.

Five framing mistakes to avoid

We've made every one of these, so you don't have to:

• Framing only the bright core. Catalogue sizes describe what photographs show after hours of exposure, not what you see in a stretched preview. The Orion Nebula "is" 1° across, but its faint outer wings reward another half-degree of margin. When in doubt, frame wider — you can crop later; you cannot un-crop.
• Forgetting the rotation. A 2:3 sensor on a long, thin target like the Andromeda Galaxy can gain the equivalent of a whole sensor class just by rotating 30–40°. Try the rotation slider before concluding your field is too small.
• Chasing perfect sampling. Beginners sometimes buy Barlows to escape a yellow "undersampled" reading. Resist. Atmospheric seeing, guiding and focus almost always limit real-world detail before sampling does — and a Barlow multiplies every one of those problems while dimming the image.
• Ignoring altitude. A perfectly framed target at 25° above the horizon is shot through more than double the atmosphere it would be at 60°. If the altitude curve peaks at 3 a.m., that is when the good data happens — plan the framing session around it, not the other way round.
• Trusting memory between devices. "I'll re-enter it at the scope" is how a 0.8× reducer silently becomes 1× and a night's framing lands wrong. Save the setup and let it sync — the numbers that matter shouldn't live in your head.

Frequently asked questions

Does a bigger telescope show a wider field of view?

No — usually the opposite. Field of view depends on focal length and sensor size, not aperture, and large telescopes tend to have long focal lengths, which narrow the field. Aperture buys light-gathering and resolving power instead.

What field of view do I need for the Orion Nebula or Andromeda?

The Orion Nebula's bright complex spans about 1°, so a field of 1.5°–2° frames it with breathing room. The Andromeda Galaxy stretches roughly 3° — most setups need a short focal length, a focal reducer, or a mosaic to fit it.

What is a good image scale for astrophotography?

Match it to your sky: a common rule is seeing ÷ 3 to seeing ÷ 2, which for typical 2–4″ backyard seeing lands between about 0.7 and 2″/px. The calculator's sampling gauge does this arithmetic for you once you pick a seeing value.

Is undersampling bad?

Not inherently. Undersampled setups trade fine star detail for huge sky coverage — that's how wide-field imagers work on purpose. It only matters if your goal is resolving small, detailed targets like galaxies or planetary nebulae.

Do I need an account to use the FOV calculator?

No — everything works without one, and your settings persist in that browser. An account (free) adds one thing: your saved setups, lists and sites sync across all your devices.

Ready to try it on your own gear? Open the telescope field of view calculator, pick your telescope and camera, and see exactly what your sky will look like tonight. If you're still assembling that first kit, start with our astrophotography fundamentals guides — then come back and frame something beautiful.
